ZXCT1020 Datasheet, Monitor, Zetex Semiconductors

ZXCT1020 Features

  • Monitor
  • Accurate high-side current sensing Versatile current output scaling 2.5V - 20V operating range 25µA quiescent current 1% typi

PDF File Details

Part number:

ZXCT1020

Manufacturer:

Zetex Semiconductors

File Size:

1.17MB

Download:

📄 Datasheet

Description:

Low offset current output current monitor. The ZXCT1020 is a precision high-side current sense monitor. Using this type of device eliminates the need to disrupt the ground plan

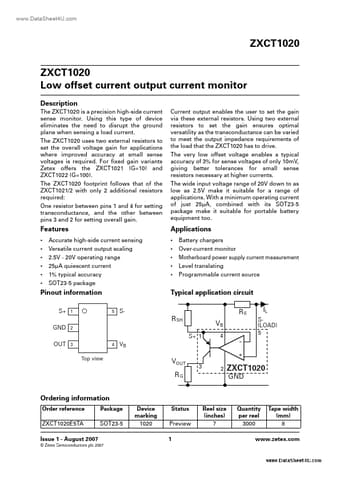

Datasheet Preview: ZXCT1020 📥 Download PDF (1.17MB)
Page 2 of ZXCT1020 Page 3 of ZXCT1020

ZXCT1020 Application

  • Applications where improved accuracy at small sense voltages is required. For fixed gain variants Zetex offers the ZXCT1021 (G=10) and ZXCT1022 (G=1
