ZXMN2A01E6, 20V N-CHANNEL MOSFET

ZXMN2A01E6 20V N-CHANNEL ENHANCEMENT MODE MOSFET SUMMARY V(BR)DSS=20V; RDS(ON)=0.12⍀ D=3.03A .
This new generation of TRENCH MOSFETs from Zetex utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed.

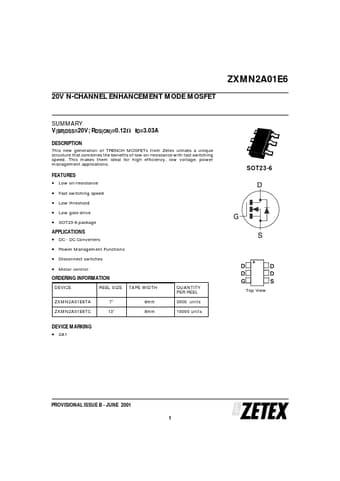

datasheet Preview Page 1 from Datasheet4u.com

ZXMN2A01E6_ZetexSemiconductors.pdf

ZXMN2A01E6 Datasheet Preview — Preview of ZXMN2A01E6 PDF

Datasheet Details

Part number:

ZXMN2A01E6

Manufacturer:

Zetex Semiconductors

File Size:

53.94 KB

Description:

20V N-CHANNEL MOSFET

Features

* SOT23-6
* Low on-resistance
* Fast switching speed
* Low threshold
* Low gate drive
