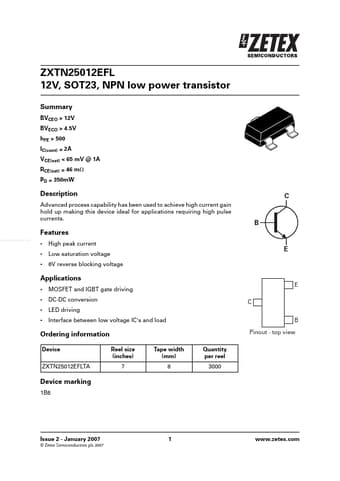

* High peak current Low saturation voltage 6V reverse blocking voltage E Applications
* MOSFET and IGBT gate driving DC-DC conversion LED driving Interface between low voltage IC's and load E C B Pinout - top
ZXTN25012EFL Datasheet (502.30 KB)
ZXTN25012EFL
Zetex Semiconductors
502.30 KB
Npn transistor.
ZXTN25012EFL 12V, SOT23, NPN low power transistor
Summary
BVCEO > 12V BVECO > 4.5V hFE > 500 IC(cont) = 2A VCE(sat) < 65 mV @ 1A RCE(sat) = 46 m⍀ PD =.
