ZXTN25050DFH Datasheet, Transistor, DIODES

ZXTN25050DFH Features

  • Transistor
  • BVCEO > 50V
  • IC = 4A Collector Current
  • Low Saturation Voltage VCE(sat) < 60mV @ 1A
  • Epitaxial Planar Die Construction
  • High Peak Current a

PDF File Details

Part number:

ZXTN25050DFH

Manufacturer:

DIODES ↗

File Size:

1.45MB

Download:

📄 Datasheet

Description:

50v npn transistor.

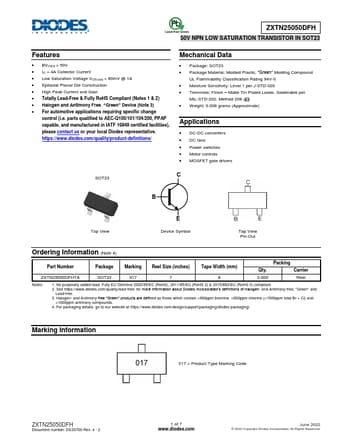

Datasheet Preview: ZXTN25050DFH 📥 Download PDF (1.45MB)
Page 2 of ZXTN25050DFH Page 3 of ZXTN25050DFH

ZXTN25050DFH Application

  • Applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified

TAGS

ZXTN25050DFH
50V
NPN
TRANSISTOR
DIODES

📁 Related Datasheet

ZXTN25050DFH - NPN Transistor (Zetex Semiconductors)
ZXTN25050DFH 50V, SOT23, NPN medium power transistor Summary BVCEX > 150V BVCEO > 50V BVECO > 5V IC(cont) = 4A VCE(sat) < 60mV @ 1A RCE(sat) = 40m⍀ PD.

ZXTN25012EFH - NPN medium power transistor (Zetex Semiconductors)
ZXTN25012EFH 12V, SOT23, NPN medium power transistor Summary BVCEO > 12V BVECX > 6V hFE > 500 IC(cont) = 6A VCE(sat) < 32mV @ 1A RCE(sat) = 23m⍀ PD =.

ZXTN25012EFL - NPN Transistor (Zetex Semiconductors)
ZXTN25012EFL 12V, SOT23, NPN low power transistor Summary BVCEO > 12V BVECO > 4.5V hFE > 500 IC(cont) = 2A VCE(sat) < 65 mV @ 1A RCE(sat) = 46 m⍀ PD =.

ZXTN25012EZ - 12V NPN high gain transistor (Zetex Semiconductors)
ZXTN25012EZ 12V NPN high gain transistor in SOT89 Summary BVCEO > 12V BVECX > 6V .. hFE > 500 IC(cont) = 6.5A VCE(sat) < 38mV @ 1A RC.

ZXTN25015EFH - NPN medium power transistor (Zetex Semiconductors)
.. ZXTN25015DFH 15V, SOT23, NPN medium power transistor Summary BVCEX > 30V BVCEO > 15V BVECO > 4.5V IC(cont) = 5A VCE(sat) < 40 mV .

ZXTN25020BFH - NPN Transistor (Zetex Semiconductors)
ZXTN25020BFH 20V, SOT23, NPN medium power transistor Summary BVCEX > 50V BVCEO > 20V BVECO > 3V IC(cont) = 4.5A VCE(sat) < 45 mV @ 1A RCE(sat) = 27 m⍀.

ZXTN25020CFH - NPN Transistor (Zetex Semiconductors)
ZXTN25020CFH 20V, SOT23, NPN medium power transistor Summary BVCEX > 70V BVCEO > 20V BVECO > 5V IC(cont) = 4.5A VCE(sat) < 45 mV @ 1A RCE(sat) = 28 m⍀.

ZXTN25020DFH - NPN medium power transistor (Zetex Semiconductors)
.. ZXTN25020DFH 20V SOT23 NPN medium power transistor Summary BVCEX > 100V; BV(BR)CEO > 20V BVECO > 5V; IC(CONT) = 4.5A RCE(sat) = 2.

ZXTN25020DFL - NPN Transistor (Zetex Semiconductors)
ZXTN25020DFL 20V, SOT23, NPN low power transistor Summary BVCEX > 100V BVCEO > 20V BVECO > 5V IC(cont) = 2A ICM = 8A VCE(sat) < 70mV @ 1A RCE(sat) = 5.

ZXTN25040DFH - NPN Transistor (Zetex Semiconductors)
ZXTN25040DFH 40V, SOT23, NPN medium power transistor Summary BVCEX > 130V BVCEO > 40V BVECO > 6V IC(cont) = 4A VCE(sat) < 55 mV @ 1A RCE(sat) = 35 m⍀ .
