Datasheet Details
- Part number
- ZXTN08400BNS
- Manufacturer
- DIODES ↗
- File Size
- 636.31 KB
- Datasheet
- ZXTN08400BNS-DIODES.pdf
- Description
- 400V DUAL NPN MEDIUM POWER TRANSISTORS

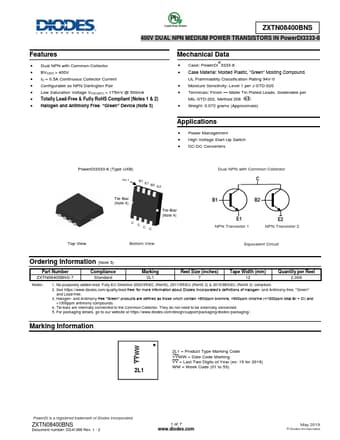

ZXTN08400BNS Description
ZXTN08400BNS 400V DUAL NPN MEDIUM POWER TRANSISTORS IN PowerDI3333-8 .
ZXTN08400BNS Features
* Dual NPN with Common-Collector
* BVCEO > 400V
* IC = 0.5A Continuous Collector Current
* Configurable as NPN Darlington Pair
* Low Saturation Voltage VCE(SAT) < 175mV @ 500mA
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” D
ZXTN08400BNS Applications
* Power Management
* High Voltage Start-Up Switch
* DC-DC Converters
PowerDI3333-8 (Type UXB)
Pin 1
BS12 EG12SB12GE12
Tie-Bar
(Note 4)
CD CD CD CD
Tie-Bar
(Note 4)
Top View
Bottom View
Dual NPN with Common-Collector
C
C
C
BB1
BB2
EE1 NPN Transistor 1
EE2 NPN Transistor 2
