ZXTN07012EFF Datasheet - Zetex Semiconductors

NPN Transistor

ZXTN07012EFF Features

* Low profile SOT23F package Low saturation voltage High gain High power dissipation E E C B Pinout - top view Applications

* LED driver Boost converter Logic interface Motor drive Ordering information Device ZXTN07012EF

ZXTN07012EFF General Description

This low voltage NPN transistor has been designed for applications requiring high gain and very low saturation voltage. The SOT23F package is pin compatible with the industry standard SOT23 footprint but offers lower profile and higher dissipation for applications where power density is of utmost im.

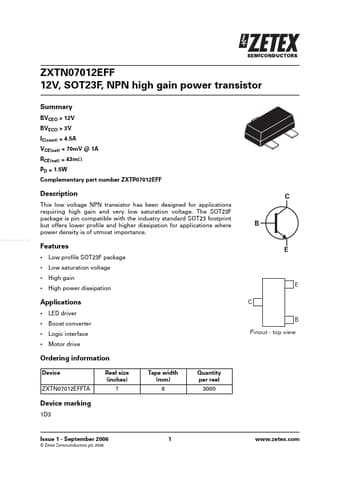

ZXTN07012EFF Datasheet (471.91 KB)

ZXTN07012EFF Datasheet Preview — Preview of ZXTN07012EFF PDF

Datasheet Details

Part number:

ZXTN07012EFF

Manufacturer:

Zetex Semiconductors

File Size:

471.91 KB

Description:

Npn transistor.
ZXTN07012EFF 12V, SOT23F, NPN high gain power transistor Summary BVCEO > 12V BVECO > 3V IC(cont) = 4.5A VCE(sat) < 70mV @ 1A RCE(sat) = 43m⍀ PD = 1.5W.
