ZXTN08400BFF Datasheet - Zetex Semiconductors

NPN Transistor

ZXTN08400BFF Features

* High voltage Low saturation voltage Low profile small outline package E E C B Pinout - top view Tape width (mm) 8 Quantity per reel 3000 Applications

* Modems Telecoms line switching Ordering information Device ZXTN08400BFFTA Reel size (inches) 7

ZXTN08400BFF General Description

This NPN transistor has been designed for applications requiring high voltage blocking. The SOT23F package is pin compatible with the industry standard SOT23 foot print but offers lower profile and higher dissipation for applications where power density is of utmost importance. www.DataSheet4U.com .

ZXTN08400BFF Datasheet (536.40 KB)

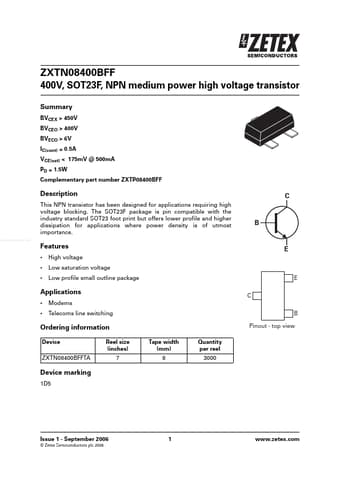

ZXTN08400BFF Datasheet Preview — Preview of ZXTN08400BFF PDF

Datasheet Details

Part number:

ZXTN08400BFF

Manufacturer:

Zetex Semiconductors

File Size:

536.40 KB

Description:

Npn transistor.
ZXTN08400BFF 400V, SOT23F, NPN medium power high voltage transistor Summary BVCEX > 450V BVCEO > 400V BVECO > 6V IC(cont) = 0.5A VCE(sat) < 175mV @ 50.
