ZXTN04120HP5, 120V NPN MEDIUM POWER DARLINGTON TRANSISTOR

A Product Line of Diodes Incorporated ZXTN04120HP5 120V NPN MEDIUM POWER DARLINGTON TRANSISTOR IN POWERDI®5 .

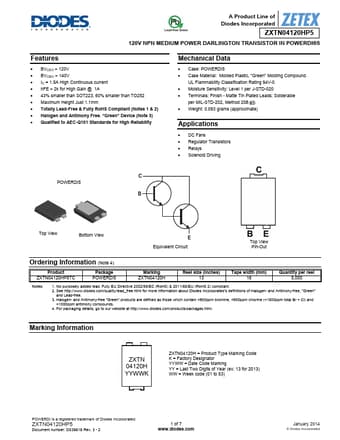

datasheet Preview Page 1 from Datasheet4u.com

ZXTN04120HP5-Diodes.pdf

ZXTN04120HP5 Datasheet Preview — Preview of ZXTN04120HP5 PDF

Datasheet Details

Part number:

ZXTN04120HP5

Manufacturer:

DIODES ↗

File Size:

262.93 KB

Description:

120V NPN MEDIUM POWER DARLINGTON TRANSISTOR

Features

* BVCEO > 120V
* BVCBO > 140V
* IC = 1.5A High Continuous current
* hFE > 2k for High Gain @ 1A
* 43% smaller than SOT223; 60% smaller than TO252
* Maximum Height Just 1.1mm
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green”

Applications

* DC Fans
* Regulator Transistors
* Relays
* Solenoid Driving POWERDI5 C B Top View Bottom View E Equivalent Circuit Top View Pin-Out Ordering Information (Note 4) Product ZXTN0
