ZXTN19020DZ - 20V NPN high gain transistor

Description

Packaged in the SOT89 outline this new low saturation NPN transistor offers extremely low on state losses making it ideal for use in DC-DC circuits and various driving and power management functions.

Features

  • 7.5A continuous current.
  • Up to 20A peak current.
  • Very low saturation voltage.
  • 70V forward blocking voltage.
  • 4.5V reverse blocking voltage B C E.

📥 Download Datasheet

Datasheet preview – ZXTN19020DZ

Datasheet Details

Part number ZXTN19020DZ
Manufacturer Zetex Semiconductors
File Size 345.39 KB
Description 20V NPN high gain transistor
Datasheet download datasheet ZXTN19020DZ Datasheet
Additional preview pages of the ZXTN19020DZ datasheet.

📁 Similar Datasheet

Other Datasheets by Zetex Semiconductors

Full PDF Text Transcription

Click to expand full text

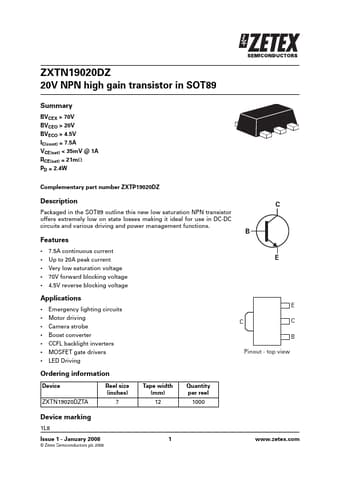

ZXTN19020DZ 20V NPN high gain transistor in SOT89 Summary BVCEX > 70V BVCEO > 20V BVECO > 4.5V IC(cont) = 7.5A VCE(sat) < 35mV @ 1A RCE(sat) = 21m⍀ PD = 2.4W Complementary part number ZXTP19020DZ Description Packaged in the SOT89 outline this new low saturation NPN transistor offers extremely low on state losses making it ideal for use in DC-DC circuits and various driving and power management functions. Features • 7.5A continuous current • Up to 20A peak current • Very low saturation voltage • 70V forward blocking voltage • 4.
