ZXTN19100CFF

NPN Transistor

Diodes

ZXTN19100CFF Features

* BVCEO > 100V

* BVCEX > 200V

* BVECO > 5V

* IC = 4.5A Continuous Collector Current

* Low Saturation Voltage VCE(SAT) < 60mV @ 1A

* RCE(SAT) = 38mΩ

* hFE Characterised Up to 5A

* 1.5W Power Dissipation

* Complementary PNP Type: ZXTP19100CFF

* Totally Lead-Free

ZXTN19100CFF General Description

Advanced process capability has been used to maximise the performance of this transistor. The SOT23F package is pin compatible with the industry standard SOT23 footprint but offers lower profile and higher dissipation for applications where power density is of utmost importance. Mechanical Data

ZXTN19100CFF Datasheet (322.38 KB)

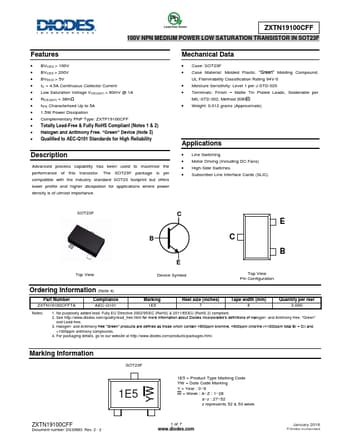

ZXTN19100CFF Datasheet Preview — Preview of ZXTN19100CFF PDF
