ZXTN19020DZQ

20V NPN TRANSISTOR

DIODES

ZXTN19020DZQ Features

* BVCEX > 70V

* BVCEO > 20V

* BVECO > 4.5V

* IC = 7.5A High Continuous Current

* VCE(SAT) < 35mV @1A

* Low Equivalent On-Resistance; RCE(sat) = 21mΩ

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* Qua

ZXTN19020DZQ General Description

This bipolar junction transistor (BJT) is designed to meet the stringent requirements of automotive applications. Mechanical Data
* Case: SOT89
* Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0
* Moisture Sensitivity: Level 1 per J-STD-020
* Ter.

ZXTN19020DZQ Datasheet (519.36 KB)

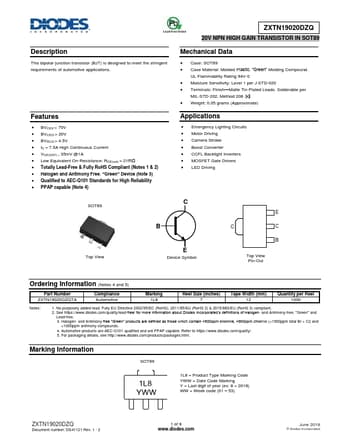

ZXTN19020DZQ Datasheet Preview — Preview of ZXTN19020DZQ PDF

Datasheet Details

Part number:

ZXTN19020DZQ

Manufacturer:

DIODES ↗

File Size:

519.36 KB

Description:

20v npn transistor.
