ZXTN19100CZ, NPN Transistor

ZXTN19100CZ 100V NPN medium power transistor in SOT89 Summary BVCEX > 200V BVCEO > 100V BVECO > 5V IC(cont) = 5.25A VCE(sat) < 65mV @ 1A RCE(sat) = 4.
Packaged in the SOT89 outline this new low saturation NPN transistor offers extremely low on state losses making it ideal for use in DC-DC circuits an.

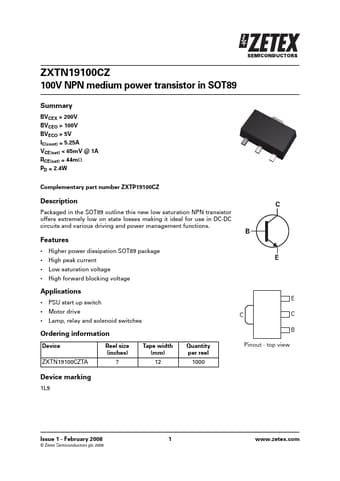

datasheet Preview Page 1 from Datasheet4u.com

ZXTN19100CZ-ZetexSemiconductors.pdf

ZXTN19100CZ Datasheet Preview — Preview of ZXTN19100CZ PDF

Datasheet Details

Part number:

ZXTN19100CZ

Manufacturer:

Zetex Semiconductors

File Size:

382.93 KB

Description:

NPN Transistor

Features

* Higher power dissipation SOT89 package
* High peak current
* Low saturation voltage

Applications

* PSU start up switch
* Motor drive
* Lamp, relay and solenoid switches Ordering information Device ZXTN19100CZTA Reel size (inches) 7 Tape width (mm) 12 Quantity per reel 1000 E CC B Pinout - top view Device marking 1L9 Issue 1 - February 2008 © Zetex Semiconductors
