ZXTN19020CFF

20V NPN HIGH GAIN POWER TRANSISTOR

ZXTN19020CFF Features

* BVCEO > 20V

* BVCEX > 65V

* BVECO > 4.5V

* IC = 7A Continuous Collector Current

* Very Low VCE(SAT) < 30mV @ 1A

* RCE(SAT) = 18mΩ

* 1.5W Power Dissipation

* High Forward Blocking Voltage

* High Gain

* Complementary PNP Type: ZXTP19020CFF

* Totally Lead-F

ZXTN19020CFF General Description

Advanced process capability has been used to maximize the performance of this transistor. The SOT23F package is compatible with the industry standard SOT23 footprint but offers lower profile and higher dissipation for applications where power density is of utmost importance. Mechanical Data
* C.

ZXTN19020CFF Datasheet (321.43 KB)

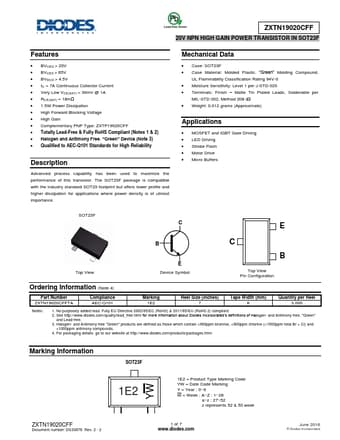

Preview of ZXTN19020CFF PDF

Datasheet Details

Part number:

ZXTN19020CFF

Manufacturer:

DIODES ↗

File Size:

321.43 KB

Description:

20v npn high gain power transistor.
