ZT1525S

24V Asynchronous Step-Down DC/DC Converter

ZT1525S Features

* 4V to 24V input voltage

* Output current up to 3A

* 200kHz to 2.5MHz programmable frequency

* Precision 1V feedback voltage

* Peak current mode control

* Cycle‐by‐cycle current limiting

* Hiccup overload protection with frequency foldback

* Soft‐start and enable

ZT1525S General Description

The ZT1525 is a constant frequency peak current‐mode step‐down switching regulator. The range of input voltage is from 4V to 24V. The output current is up to 3A. The switching frequency of the ZT1525 is programmable up to 2.5MHz, to achieve high input/output conversion ratio, and allowing the use of.

ZT1525S Datasheet (310.99 KB)

Preview of ZT1525S PDF

Datasheet Details

Part number:

ZT1525S

Manufacturer:

ZillTek

File Size:

310.99 KB

Description:

24v asynchronous step-down dc/dc converter.

📁 Related Datasheet

ZT1525 24V Asynchronous Step-Down DC/DC Converter (ZillTek)

ZT1385E 250kbps RS232 Transceivers (Zywyn)

ZT1385F 1000kbps RS232 Transceivers (Zywyn)

ZT202 Europe market universal remote control IC (Zonter)

ZT202E Low Power 5V 250kbps RS232 Transceivers (Zywyn)

ZT2046 4-WIRE RESISTIVE TOUCH SCREEN CONTROLLER (ZillTek Technology)

ZT207E (ZT207E - ZT213E) Low Power 5V 250Kbps RS232 Transceivers (Zywyn)

ZT207F (ZT207F - ZT213F) Low Power 5V 1000Kbps RS232 Transceivers (Zywyn)

ZT2083 I2C Resistive Touch Screen Controller (ZILLTEK)

ZT208E Low Power 5V 250Kbps RS232 Transceivers (Zywyn)

TAGS

ZT1525S 24V Asynchronous Step-Down Converter ZillTek

Image Gallery

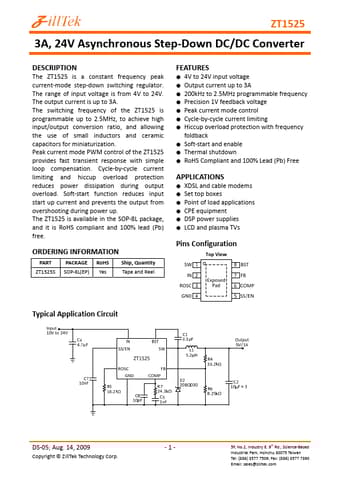

ZT1525S Datasheet Preview Page 2 ZT1525S Datasheet Preview Page 3
