Z86228

LINE 21 CLOSED CAPTION CONTROLLER (L21C)

Z86228 Features

* or non- Z86228 CPS DC-4243-00 stated on the front and back of the slaes order acknowledgement, Zilog makes no claim as to quality and reliability under the CPS. The product remains subject to standard warranty for replacement due to defects in materials and workmanship. conformance with some aspe

Z86228 General Description

The Z86228 (Line 21 Closed-Caption Controller) is a single I.C. designed to provide the functional performance of a L21C Decoder module. This Superintegration™ VLSI device is completely self contained requiring only composite video, a horizontal timing signal as input and an external keyer (i.e., vi.

Z86228 Datasheet (87.61 KB)

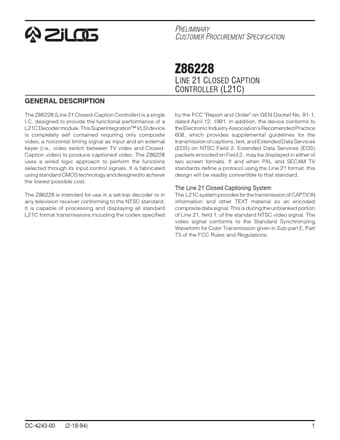

Preview of Z86228 PDF

Datasheet Details

Part number:

Z86228

Manufacturer:

Zilog.

File Size:

87.61 KB

Description:

Line 21 closed caption controller (l21c).
P R E L I M I N A R Y Z86228 CPS DC-4243-00 PRELIMINARY CUSTOMER PROCUREMENT SPECIFICATION Z86228 LINE 21 CLOSED CAPTION CONTROLLER (L21C) GENERAL .
