Z86233 - CMOS Z8 8K ROM CONSUMER CONTROLLER PROCESSOR

Zilog.

📥 Download Datasheet

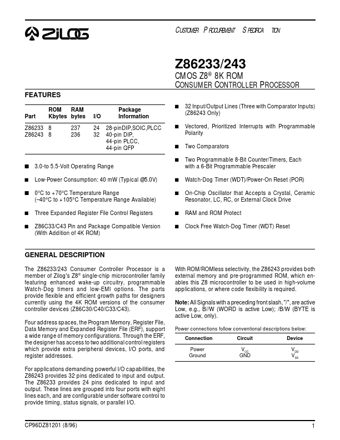

Z86233 Datasheet Preview — Preview of Z86233 PDF

Datasheet Details

Part number: Z86233
Manufacturer: Zilog.
File Size: 122.20 KB
Datasheet: Z86233_ZilogInc..pdf
Description: CMOS Z8 8K ROM CONSUMER CONTROLLER PROCESSOR

Z86233 Product details

Description

The Z86233/243 Consumer Controller Processor is a member of Zilog's Z8® single-chip microcontroller family featuring enhanced wake-up circuitry, programmable Watch-Dog timers and low-EMI options.

Features

Part ROM RAM Kbytes bytes 237 236 I/O 24 32 Package Information 28-pinDIP,SOIC,PLCC 40-pin DIP, 44-pin PLCC, 44-pin QFP s 32 Input/Output Lines (Three with Comparator Inputs) (Z86243 Only) Vectored, Prioritized Interrupts with Programmable Polarity Two Comparators Two Programmable 8-Bit Counter/Timers, Each with a 6-Bit Programmable Prescaler Watch-Dog Timer (WDT)/Power-On Reset (POR) On-Chip Oscillator that Accepts a Crystal, Ceramic Resonator, LC, RC, or External Clock Drive RAM and ROM Prote.
