Z89135 Datasheet - Zilog.

Z89135, Low-Cost DTAD Controller

PRELIMINARY PRODUCT SPECIFICATION 1 Z89135/Z89136 LOW-COST DTAD CONTROLLER .
The Z89135/136 is a fully integrated, dual processor controller designed for low-cost digital telephone answering machines.

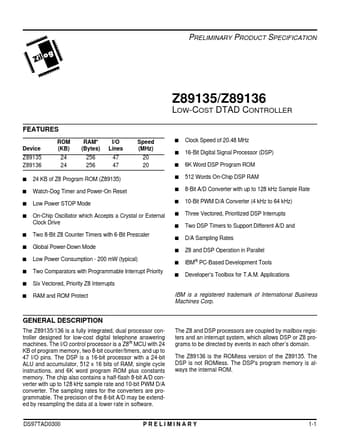

datasheet Preview Page 1 from Datasheet4u.com

Z89135_ZilogInc..pdf

Z89135 Datasheet Preview — Preview of Z89135 PDF

Datasheet Details

Part number:

Z89135

Manufacturer:

Zilog.

File Size:

328.80 KB

Description:

Low-Cost DTAD Controller

Features

* Device Z89135 Z89136 s s s s s s s s s s s s s s s s 1 ROM (KB) 24 24 RAM
* (Bytes) 256 256 I/O Lines 47 47 Speed (MHz) 20 20 Clock Speed of 20.48 MHz 16-Bit Digital Signal Processor (DSP) 6K Word DSP Program ROM 512 Words On-Chip DSP RAM 8-Bit A/D Converter with up to 128 kHz Sample Rate 1

Applications

* 24 KB of Z8 Program ROM (Z89135) Watch-Dog Timer and Power-On Reset Low Power STOP Mode On-Chip Oscillator which Accepts a Crystal or External Clock Drive Two 8-Bit Z8 Counter Timers with 6-Bit Prescaler Global Power-Down Mode Low Power Consumption - 200 mW (typical) Two Comparators with Programmab
