Z89C6501ZEM Datasheet - Zilog

ICEBOX FAMILY Z8 IN-CIRCUIT EMULATOR -C65

Z89C6501ZEM Features

* s Supported Devices Emulation Z89165 Z89166 Z89C65 Z89C66 s ICEBOX Emulator Provides In-Circuit Program Debug Emulation Z8 GUI Emulator Software Windows-Based User Interface RS-232 Connector ICE Pod Connector for Emulation Package 68-Pin 68-Pin 68-Pin 68-Pin PLCC PLCC PLCC PLCC Programming N/A

Z89C6501ZEM General Description

The Z89C6501ZEM is a member of Zilog's ICEBOX product family of in-circuit emulators providing support for the above listed Z8 microcontroller devices. Zilog's in-circuit emulators are interactive, Windoworiented development tools, providing a real-time environment for emulation and debugging. The e.

Z89C6501ZEM Datasheet (55.57 KB)

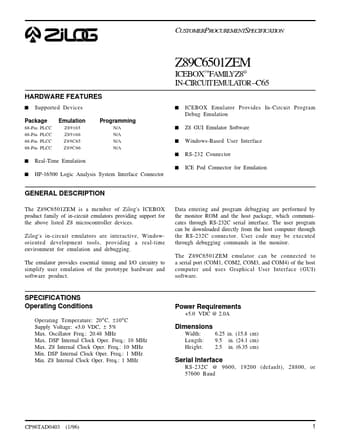

Preview of Z89C6501ZEM PDF

Datasheet Details

Part number:

Z89C6501ZEM

Manufacturer:

Zilog

File Size:

55.57 KB

Description:

Icebox family z8 in-circuit emulator -c65.
www.DataSheet4U.com Z89C6501ZEM CP96TAD00403 CUSTOMERPROCUREMENTSPECIFICATION Z89C6501ZEM ICEBOX™FAMILYZ8® IN-CIRCUIT EMULATOR C65 HARDWARE.
