Z89010404PSC Datasheet - Zilog.

Z89010404PSC - 40-Pin Low-Cost Digital Television Controller

The Z90102/3/4 40-pin Low-Cost Digital Television Controller are members of the Z8®STOP Mode MCU singlechip family with 4, 6, and 8 KB of ROM and 236 bytes of RAM.

The device is offered in a 40-pin package and is DS97TEL1902 CMOS compatible.

The DTC offers mask programmed ROM which enables the Z8® M

Z89010404PSC Features

* 8-Bit CMOS Microcontroller for Consumer Television, Cable and Satellite Receiver Applications. Device Z90102 Z90103 Z90104 ROM (KB) 4 6 8 RAM

* (Bytes) 236 236 236 I/O 24 24 24 s s 1 Clock Speed up to 4 MHz On-Chip Oscillator that Accepts a Crystal, Ceramic Resonator, LC or External Clock Drive

Z89010404PSC_ZilogInc..pdf

Preview of Z89010404PSC PDF

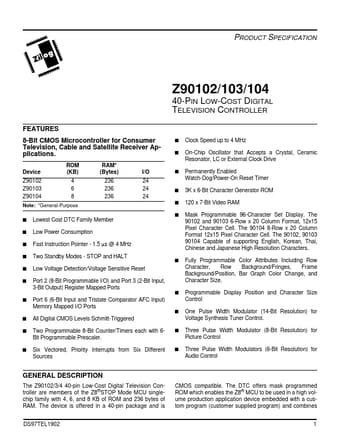

Z89010404PSC Datasheet Preview Page 2 Z89010404PSC Datasheet Preview Page 3

Datasheet Details

Part number:

Z89010404PSC

Manufacturer:

Zilog.

File Size:

232.32 KB

Description:

40-pin low-cost digital television controller.
