BAW56WG - Silicon Switching Diode Array

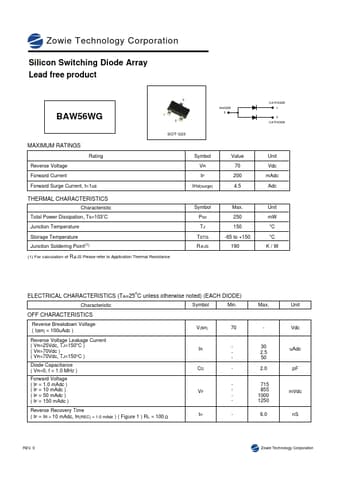

Zowie Technology Corporation Silicon Switching Diode Array Lead free product BAW56WG 3 1 2 ANODE 3 MAXIMUM RATINGS Rating Reverse Voltage Forward Current Forward Surge Current, t=1us SOT-323 Symbol VR IF IFM(surge) THERMAL CHARACTERISTICS Characteristic Total Power Dissipation, Ts=103OC Junction Temperature Storage Temperature Junction Soldering Point(1) (1) For calculation of R JS Please refer to Application Thermal Resistance.

Symbol Ptot TJ TSTG R JS Value 70 200 4.5 Max.

250 150 -65
