SCD18, (SCD12 - SCD110) Surface Mount Schottky Barrier Rectifier

www.DataSheet4U.com SCD12 THRU SCD110 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 1.0 Ampere D ED T.

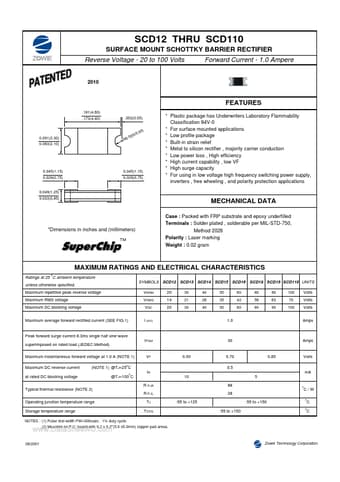

datasheet Preview Page 1 from Datasheet4u.com

SCD18_ZowieTechnology.pdf

SCD18 Datasheet Preview — Preview of SCD18 PDF

Datasheet Details

Part number:

SCD18

Manufacturer:

Zowie Technology

File Size:

175.79 KB

Description:

(SCD12 - SCD110) Surface Mount Schottky Barrier Rectifier

Features

* .181(4.60) .173(4.40) .002(0.05) 0.091(2.30) 0.083(2.10) R 2 0.0 0(0 .50 ) 0.045(1.15) 0.029(0.75) 0.045(1.15) 0.029(0.75)
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

Applications

* Low profile package
* Built-in strain relief
* Metal to silicon rectifier , majority carrier conduction
* Low power loss , High efficiency
* High current capability , low VF
* High surge capacity
* For using in low voltage high frequency switching power supply, inverter
