MM3Z5221BH - SILICON PLANAR ZENER DIODES

Zowie

📥 Download Datasheet

MM3Z5221BH Datasheet Preview — Preview of MM3Z5221BH PDF

Datasheet Details

Part number: MM3Z5221BH
Manufacturer: Zowie
File Size: 129.64 KB
Datasheet: MM3Z5221BH-Zowie.pdf
Description: SILICON PLANAR ZENER DIODES

MM3Z5221BH Product details

Description

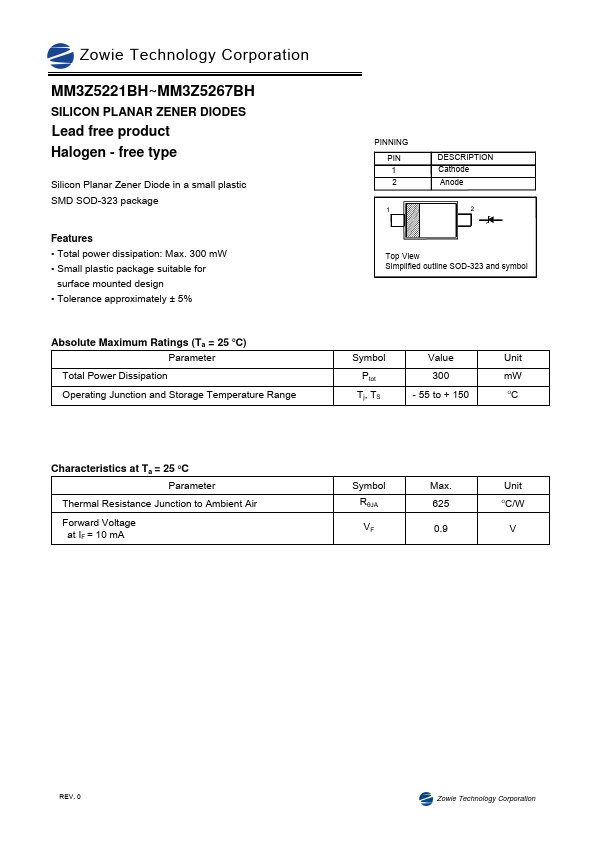

Cathode Anode 2 Top View Simplified outline SOD-323 and symbol Symbol Value Unit Ptot 300 mW Tj, TS - 55 to + 150 OC Characteristics at Ta = 25 OC Parameter Thermal Resistance Junction to Ambient Air Forward Voltage at IF = 10 mA Symbol RșJA VF Max.625 0.9 Unit OC/W V REV.0 Zowie Technology Corporation Zowie Technology Corporation MM3Z5221BH~MM3Z5268BH Type Marking Code MM3Z 5221BH A1 MM3Z 5223BH B1 MM3Z 5225BH C1 MM3Z 5226BH D1 MM3Z5227BH E1 MM3Z 5228BH F1 MM3Z5229BH H1 M

Features

Total power dissipation: Max. 300 mW.
Small plastic package suitable for surface mounted design.
Tolerance approximately ± 5% Absolute Maximum Ratings (Ta = 25 OC) Parameter Total Power Dissipation Operating Junction and Storage Temperature Range.
