MM3Z5223BH, MM3Z5221BH - SILICON PLANAR ZENER DIODES

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MM3Z5223BH, MM3Z5221BH. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number MM3Z5223BH, MM3Z5221BH
Manufacturer Zowie
File Size 129.64 KB
Description SILICON PLANAR ZENER DIODES
Datasheet download datasheet MM3Z5221BH-Zowie.pdf
Note This datasheet PDF includes multiple part numbers: MM3Z5223BH, MM3Z5221BH.
Please refer to the document for exact specifications by model.

MM3Z5223BH Product details

Description

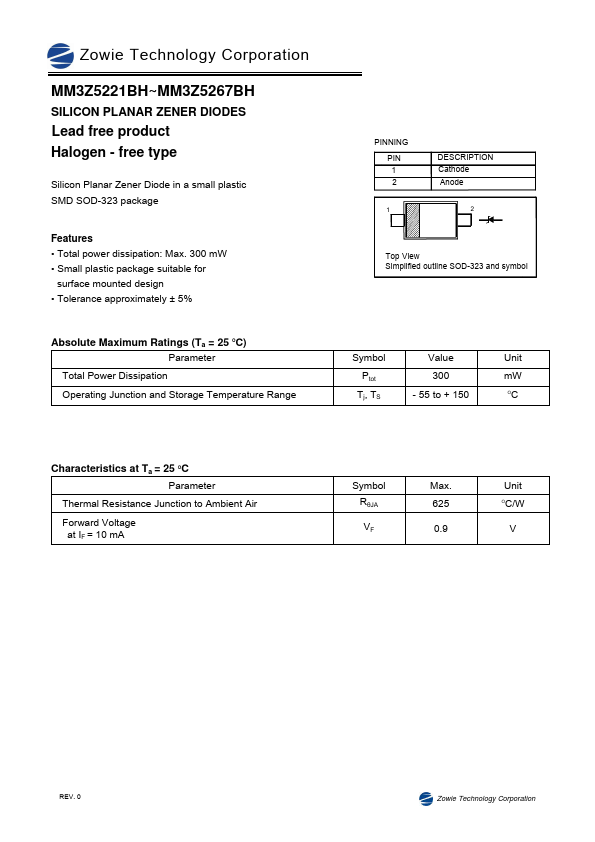

Cathode Anode 2 Top View Simplified outline SOD-323 and symbol Symbol Value Unit Ptot 300 mW Tj, TS - 55 to + 150 OC Characteristics at Ta = 25 OC Parameter Thermal Resistance Junction to Ambient Air Forward Voltage at IF = 10 mA Symbol RșJA VF Max.625 0.9 Unit OC/W V REV.0 Zowie Technology Corporation Zowie Technology Corporation MM3Z5221BH~MM3Z5268BH Type Marking Code MM3Z 5221BH A1 MM3Z 5223BH B1 MM3Z 5225BH C1 MM3Z 5226BH D1 MM3Z5227BH E1 MM3Z 5228BH F1 MM3Z5229BH H1 M

Features
