MM3Z5246BH, MM3Z5221BH SILICON PLANAR ZENER DIODES

Zowie

Description

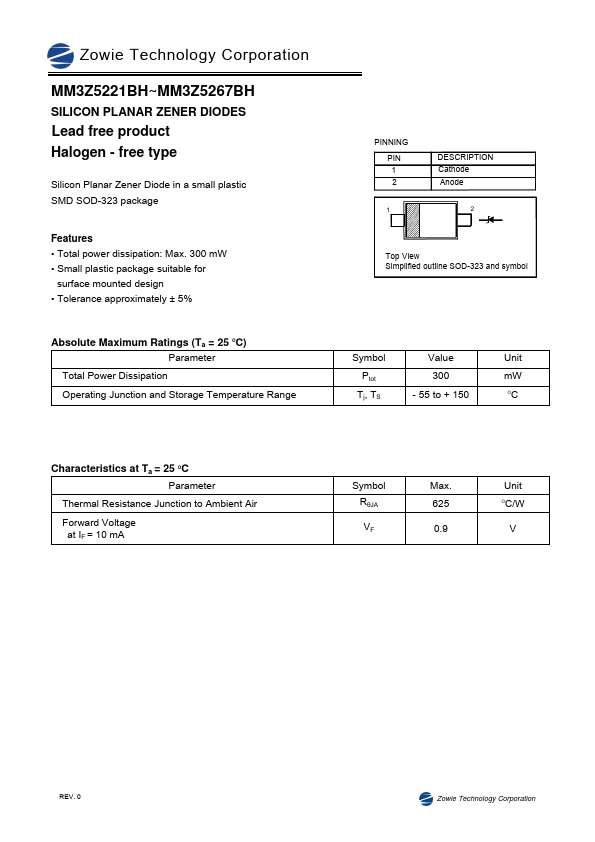

Zowie Technology Corporation MM3Z5221BH~MM3Z5267BH SILICON PLANAR ZENER DIODES Lead free product Halogen - free type Silicon Planar Zener Diode in a s.
Cathode Anode 2 Top View Simplified outline SOD-323 and symbol Symbol Value Unit Ptot 300 mW Tj, TS - 55 to + 150 OC Characteristics at Ta.

📥 Download Datasheet

MM3Z5246BH Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z5246BH, MM3Z5221BH. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MM3Z5246BH, MM3Z5221BH
Manufacturer: Zowie
File Size: 129.64 KB
Datasheet: MM3Z5221BH-Zowie.pdf
Description: SILICON PLANAR ZENER DIODES
Note: This datasheet PDF includes multiple part numbers: MM3Z5246BH, MM3Z5221BH.
Please refer to the document for exact specifications by model.

Features

* Total power dissipation: Max. 300 mW
* Small plastic package suitable for surface mounted design
* Tolerance approximately ± 5% Absolute Maximum Ratings (Ta = 25 OC) Parameter Total Power Dissipation Operating Junction and Storage Temperature Range PINNING PIN 1 2 1 DESCR
