AS3953B - 14443 High Speed Passive Tag Interface

Product Overview

ams

AS3953B 14443 High Speed Passive Tag Interface by ams - Datasheet Preview — Datasheet preview – AS3953B

Datasheet Details

Part number	AS3953B
Manufacturer	ams
File Size	765.64 KB
Description	14443 High Speed Passive Tag Interface
Datasheet	AS3953B Datasheet
Additional preview pages of the AS3953B datasheet.

Product details

Description

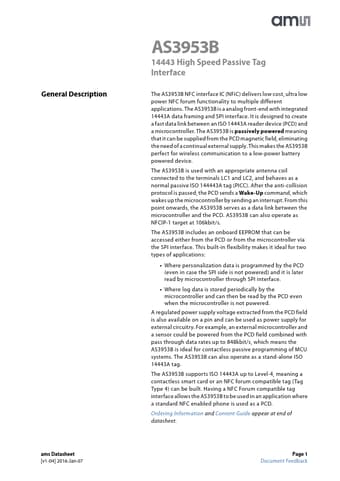

ams Datasheet [v1-04] 2016-Jan-07 AS3953B 14443 High Speed Passive Tag Interface The AS3953B NFC interface IC (NFiC) delivers low cost, ultra low power NFC forum functionality to multiple different applications.The AS3953B is a analog front-end with integrated 14443A data framing and SPI interface.It is designed to create a fast data link between an ISO 14443A reader device (PCD) and a microcontroller.The AS3953B is passively powered meaning that it can be supplied from the PCD magnetic fiel

Features

The benefits and features of AS3953B,14443 High Speed Passive Tag Interface are listed below: Benefits Features.
NFC Forum compliance for full interoperability.
Data rate transmission up to the maximum allowed by ISO 14443A compliance.
ISO 14443A compliant to Level-4.
Bit rates from 106 kbit/s till 848 kbit/s.
7 byte UID.
ECMA-340 / ISO/IEC_18092 compliance.
NFCIP-1 target at 106 kbit/s.
Internal user memory for standa.
