AS5045B - 12-Bit Programmable Magnetic Position Sensor

AS5045B Description

AS5045B 12-Bit Programmable Magnetic Position Sensor 1 General .
The AS5045B is a contact less magnetic position sensor for accurate angular measurement over a full turn of 360 degrees.

AS5045B Features

* Contact less high resolution rotary position sensor over a full turn of 360 degrees Figure 1. Blockdiagram Rotary Position Sensor IC
* Two digital 12-bit absolute outputs: - Serial interface - Pulse width modulated (PWM) output
* Quadrature A/B/I output 12-bit
* User programmable

AS5045B Applications

* The device is ideal for industrial applications like automatic or elevator doors, robotics, motor control and optical encoder replacement. VDD5V VDD3V3 LDO 3.3V Sin Hall Array & Frontend Amplifier Cos ATAN (Cordic) Ang Mag PWM Interface Absolute Interface (SSI) OTP Register AS5045B Increm

📥 Download Datasheet

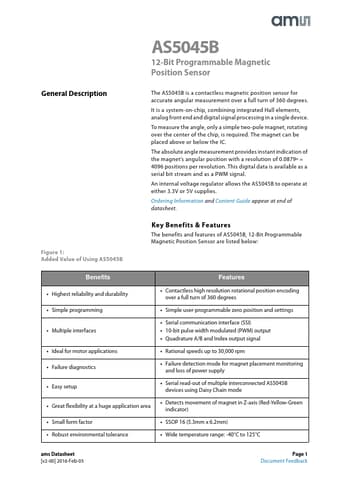

Preview of AS5045B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS5045B
Manufacturer
ams
File Size
655.89 KB
Datasheet
AS5045B-ams.pdf
Description
12-Bit Programmable Magnetic Position Sensor
