AS5047U - 14-Bit On-Axis Magnetic Rotary Position Sensor

AS5047U Description

AS5047U 14-Bit On-Axis Magnetic Rotary Position Sensor with Up to 14-Bit Binary Incremental Pulse Count General .
The AS5047U is a high-resolution rotary position sensor for fast absolute angle measurement over a full 360-degree range.

AS5047U Features

* The benefits and features of this device are listed below: Benefits
* Easy to use
* saving costs on DSP
* Higher durability and lower system costs (no shield needed)
* Versatile choice of the interface Features
* DAEC ™ Dynamic angle error compensation

AS5047U Applications

* The AS5047U supports BLDC motor commutation for the most challenging industrial applications such as:
* Factory automation
* Building automation
* Robotics
* PMSM (permanent magnet synchronous motor)
* Stepper motor closed loop
* Optical encoder replac

📥 Download Datasheet

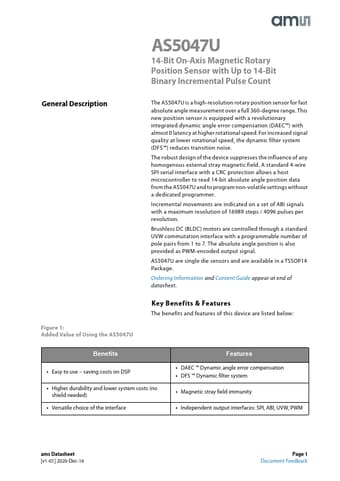

Preview of AS5047U PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS5047U
Manufacturer
ams
File Size
686.49 KB
Datasheet
AS5047U-ams.pdf
Description
14-Bit On-Axis Magnetic Rotary Position Sensor
