AS8530 - LIN Transceiver

Description

The AS8530 is a general purpose companion IC for sensor and actuator LIN slaves offering LIN transceiver and low drop voltage regulator.

Features

  • ep-SOIC8 package.
  • -40ºC to +125ºC ambient operating temperature.
  • Operating voltage 6V to 18V.
  • Linear, low-drop voltage regulator: VCC = 5V ±5% or 3.3V ±5% as a factory programming option.
  • 50mA load current.
  • Operating modes: Normal and Standby or Normal and Sleep as a factory option 3.

📥 Download Datasheet

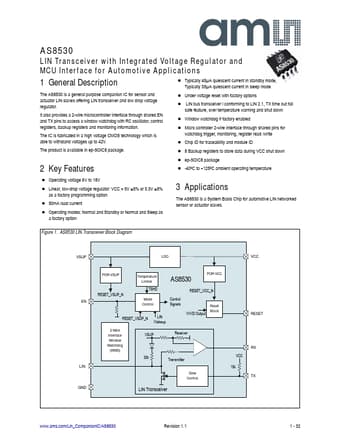

Datasheet preview – AS8530

Datasheet Details

Part number AS8530
Manufacturer ams
File Size 413.21 KB
Description LIN Transceiver
Datasheet download datasheet AS8530 Datasheet
Additional preview pages of the AS8530 datasheet.

📁 Similar Datasheet

  • AS8530 - LIN Transceiver (austriamicrosystems AG)
  • AS8500 - Universal multi pupose data aquisition system (austriamicrosystems AG)
  • AS8501 - High precision voltage and current measurement sensor interface (austriamicrosystems AG)
  • AS85049-41 - Straight Non-Self-Locking Strain Relief (Glenair)
  • AS8520 - LIN Transceiver (austriamicrosystems AG)
  • AS8578-A - ADSL Transformers (Coilcraft)
  • AS8579-A - ADSL Transformers (Coilcraft)
  • AS8002 - Solar Photovoltaic Inverter Measurement IC (austriamicrosystems AG)
  • AS8002 - SMTO-8 CASCADABLE AMPLIFIER (TELEDYNE)
  • AS8118 - Single Phase Instantaneous Energy Metering IC (austriamicrosystems AG)
Other Datasheets by ams
  • AS8506C - Battery Cell Monitor and Balancer IC
  • AS8510 - Data Acquisition Device
  • AS8515 - Data Acquisition System
  • AS8525 - LIN Transceiver
  • AS8579 - Capacitive Sensor
  • AS8202B - TTP-C2NF Communication Controller
  • AS8222 - Enhanced FlexRay Standard Transceiver
  • AS8650B - High-efficient Power Management Device

Full PDF Text Transcription

Click to expand full text
AS8530 LIN Transceiver with Integrated Voltage Regulator and MCU Interface for Automotive Applications 1 General Description The AS8530 is a general purpose companion IC for sensor and actuator LIN slaves offering LIN transceiver and low drop voltage regulator. It also provides a 2-wire microcontroller interface through shared EN and TX pins to access a window watchdog with RC oscillator, control registers, backup registers and monitoring information. The IC is fabricated in a high voltage CMOS technology which is able to withstand voltages up to 42V. The product is available in ep-SOIC8 package. Typically 45µA quiescent current in standby mode, Typically 35µA quiescent current in sleep mode Under voltage reset with factory options  LIN bus transceiver l conforming to LIN 2.
