TSL201CL

64 x 1 Linear Sensor Array

TSL201CL Features

* The benefits and features of the TSL201CL, 64 × 1 Linear Sensor Array are listed below: Benefits

* Provides high density pixel count

* Enables high resolution scanning

* Enables capacitive threshold sensing

* Pr

TSL201CL General Description

The TSL201CL linear sensor array consists of a 64 × 1 array of photodiodes and associated charge amplifier circuitry. The pixels measure 120μm (H) by 68μm (W) with 125μm center-to-center spacing and 57μm spacing between pixels. Operation is simplified by internal control logic that requires only a .

TSL201CL Datasheet (294.01 KB)

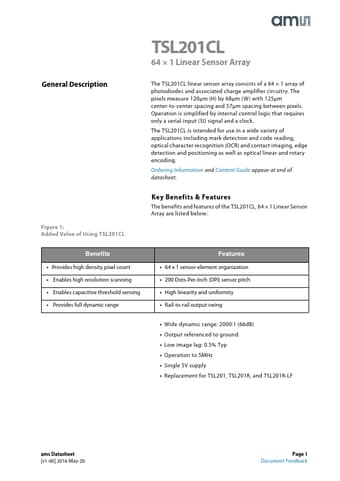

Preview of TSL201CL PDF

Datasheet Details

Part number:

TSL201CL

Manufacturer:

ams

File Size:

294.01 KB

Description:

64 x 1 linear sensor array.
