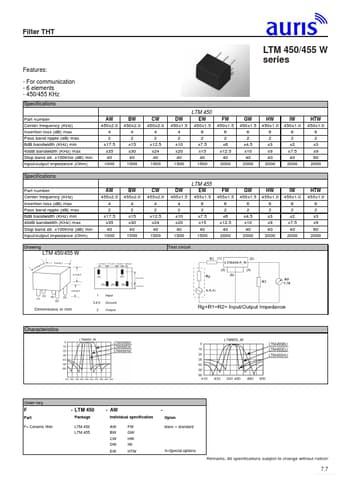

LTM455W, LTM450W - (LTM450W / LTM455W) Filter THT

Datasheet Details

Part number	LTM455W, LTM450W
Manufacturer	auris
File Size	145.57 KB
Description	(LTM450W / LTM455W) Filter THT
Datasheet	LTM450W_auris.pdf
Note	This datasheet PDF includes multiple part numbers: LTM455W, LTM450W. Please refer to the document for exact specifications by model.

- For communication - 6 elements - 450/455 KHz Specifications LTM 450 Part number Center frequency (KHz) Insertion loss (dB) max Pass band ripple (dB) max 6dB bandwidth (KHz) min 40dB bandwidth (KHz) max Stop band att. ±100KHz (dB) min Input/output impedance (Ohm) AW 450±2.0 4 2 ±17.5 ±35 40 1000 BW 450±2.0 4 2 ±15 ±30 40 1500 CW 450±2.0 4 2 ±12.5 ±24 40 1500 DW 450±1.5 4 2 ±10 ±20 40 1500 EW 450±1.5 6 2 ±7.5 ±15 40 1500 FW 450±1.5 6 2 ±6 ±12.5 40 2000 GW 450±1.5 6 2 ±4.5 ±10 40 2000 HW 450±1.0.
