LTM450W (LTM450W / LTM455W) Filter THT

📥 Download Datasheet Datasheet Preview Page 1

Description

Filter THT LTM 450/455 W series .

📥 Download Datasheet

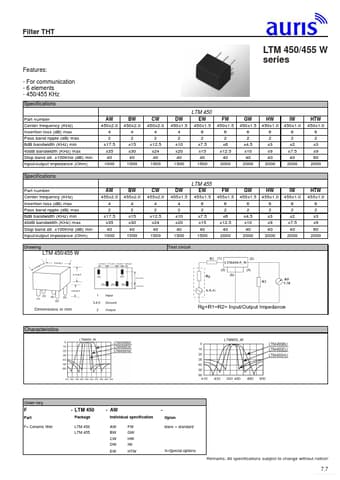

Preview of LTM450W PDF

Datasheet Specifications

Part number
LTM450W
Manufacturer
auris
File Size
145.57 KB
Datasheet
LTM450W_auris.pdf
Description
(LTM450W / LTM455W) Filter THT

Features

* - For communication - 6 elements - 450/455 KHz Specifications LTM 450 Part number Center frequency (KHz) Insertion loss (dB) max Pass band ripple (dB) max 6dB bandwidth (KHz) min 40dB bandwidth (KHz) max Stop band att. ±100KHz (dB) min Input/output impedance (Ohm) AW 450±2.0 4 2 ±17.5 ±35 40 1000 B
