AS1705 Datasheet, Amplifiers, austriamicrosystems AG

AS1705 Features

  • Amplifiers ! 2.7 to 5.5V (VCC) Single-Supply Operation THD+N: 1.8W into 4Ω at 1% (per Channel) Differential Input Adjustable Gain Option (AS1702) Internal Fixed Gain to Reduce External Component

PDF File Details

Part number:

AS1705

Manufacturer:

austriamicrosystems AG

File Size:

315.59kb

Download:

📄 Datasheet

Description:

1.8w single-channel audio power amplifiers. The AS1702 - AS1705 are single-channel differential audio power-amplifiers designed to drive 4 and 8Ω loads. The integrated gain circ

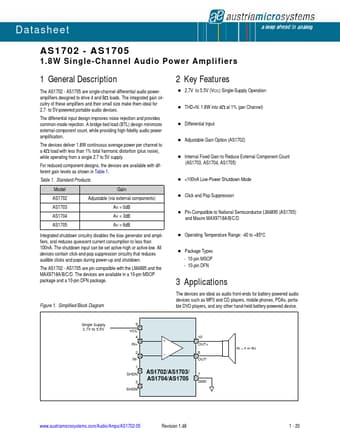

Datasheet Preview: AS1705 📥 Download PDF (315.59kb)
Page 2 of AS1705 Page 3 of AS1705

AS1705 Application

  • Applications The devices are ideal as audio front-ends for battery powered audio devices such as MP3 and CD players, mobile phones, PDAs, portable D
