AS1706 - 1.6W Audio Power Amplifiers

Product Overview

austriamicrosystems AG

Datasheet Details

Part number	AS1706
Manufacturer	austriamicrosystems AG
File Size	500.57 KB
Description	1.6W Audio Power Amplifiers
Datasheet	AS1706 Datasheet
Note	This datasheet PDF includes multiple part numbers: AS1706, AS1701. Please refer to the document for exact specifications by model.

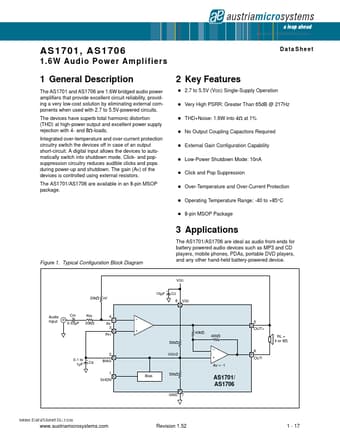

Additional preview pages of the AS1706 datasheet.

Product details

Description

The AS1701 and AS1706 are 1.6W bridged audio power amplifiers that provide excellent circuit reliability, providing a very low-cost solution by eliminating external components when used with 2.7 to 5.5V-powered circuits.

Features

! ! ! ! ! ! ! ! ! ! 2.7 to 5.5V (VDD) Single-Supply Operation Very High PSRR: Greater Than 65dB @ 217Hz THD+Noise: 1.6W into 4Ω at 1% No Output Coupling Capacitors Required External Gain Configuration Capability Low-Power Shutdown Mode: 10nA Click and Pop Suppression Over-Temperature and Over-Current Protection Operating Temperature Range: -40 to +85°C 8-pin MSOP Package 3.
