NSD-2101 Datasheet - austriamicrosystems AG

NSD-2101, Piezo Motor Driver ASIC

Technical coantmesntAsGtill valid Datasheet NSD-2101 Piezo Motor Driver ASIC for SQL-RV Series Reduced Voltage SQUIGGLE® RV and UTAF™ Motors 1 Ge.
2 Key Features In combination with the SQUIGGLE® RV or UTAF, the NSD-2101 provides the industry’s smallest piezo motor drive solution with direct ba.

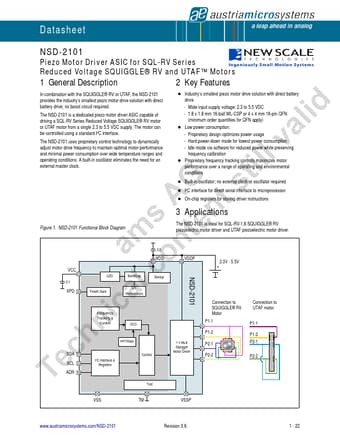

datasheet Preview Page 1 from Datasheet4u.com

NSD-2101-austriamicrosystemsAG.pdf

NSD-2101 Datasheet Preview — Preview of NSD-2101 PDF

Datasheet Details

Part number:

NSD-2101

Manufacturer:

austriamicrosystems AG

File Size:

851.52 KB

Description:

Piezo Motor Driver ASIC

Features

* In combination with the SQUIGGLE® RV or UTAF, the NSD-2101 provides the industry’s smallest piezo motor drive solution with direct battery drive; no boost circuit required. The NSD-2101 is a dedicated piezo motor driver ASIC capable of driving a SQL-RV Series Reduced Voltage SQUIGGLE® RV motor or U

Applications

* Figure 1. NSD-2101 Functional Block Diagram The NSD-2101 is ideal for SQL-RV-1.8 SQUIGGLE® RV piezoelectric motor driver and UTAF piezoelectric motor driver. VCC C1 XPD SDA SCL ADR C2 VDD LDO Power Save BandGap V/IReferences Startup Frequency Tracking & Control VCO PPTRIM I²C Interface &
