NSD-1202, Dual Piezo Motor Driver IC

Technical coantmesntAsGtill valid Data Sheet NSD-1202 Dual Piezo Motor Driver IC for SQL Series SQUIGGLE Motors 1 General .
2 Key Features The NSD-1202 is a dedicated piezo motor driver ASIC capable of driving two SQL Series SQUIGGLE motors from a single 2.

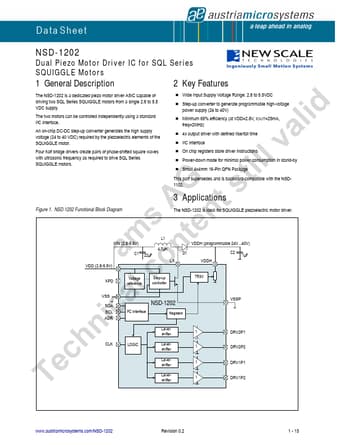

datasheet Preview Page 1 from Datasheet4u.com

NSD-1202-austriamicrosystemsAG.pdf

NSD-1202 Datasheet Preview — Preview of NSD-1202 PDF

Datasheet Details

Part number:

NSD-1202

Manufacturer:

austriamicrosystems AG

File Size:

754.46 KB

Description:

Dual Piezo Motor Driver IC

Features

* The NSD-1202 is a dedicated piezo motor driver ASIC capable of driving two SQL Series SQUIGGLE motors from a single 2.8 to 5.5 VDC supply. The two motors can be controlled independently using a standard I²C interface. An on-chip DC-DC step-up converter generates the high supply voltage (24 to 40 VD

Applications

* Figure 1. NSD-1202 Functional Block Diagram The NSD-1202 is ideal for SQUIGGLE piezoelectric motor driver. VIN (2.8-5.5V) L1 4.7µH C1 22µF VDD (2.8-5.5V) LX VDDH (programmable 24V40V) D1 VDDH C2 1µF XPD Voltage reference Step-up controller TRIM VSS SDA SCL ADR CLK NSD-1202 I²C Inter
