AS3603 - Multi-Standard Power Management Unit

Product Overview

austriamicrosystems

Datasheet Details

Part number	AS3603
Manufacturer	austriamicrosystems
File Size	770.40 KB
Description	Multi-Standard Power Management Unit
Datasheet	AS3603 Datasheet

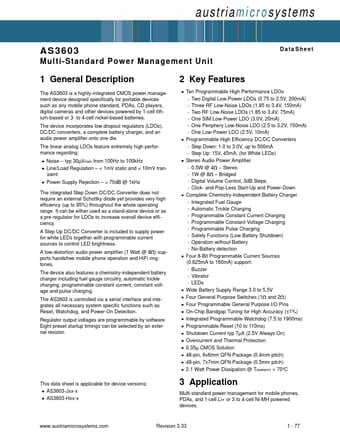

Additional preview pages of the AS3603 datasheet.

Product details

Description

The AS3603 is a highly-integrated, ultra-flexible CMOS power management device designed specifically for portable devices such as any standard of mobile phones, PDAs, CD players, digital cameras and other devices powered by 1-cell lithiumbased or 3- 4-cell nickel-based batteries.

Features

! Ten Programmable High Performance LDOs - 2 Digital Low Power LDOs (0.75-2.5V, 200mA) - 3 RF Low Noise LDOs (1.85 - 3.4V, 150mA) - 2 RF Low Noise LDOs (1.85 - 3.4V, 75mA) - 1 SIM Low Power LDO (3.0V, 20mA) - 1 Periphery Low Noise LDO (2.5 - 3.2V, 150mA) - 1 Low Power LDO (2.5V, 10mA) Programmable High Efficiency DC/DC Converters - Step Down: 1.0 - 3.0V, up to 500mA - Step Up: 15V, 45mA, (for White LEDs) Stereo Audio Power Amplifier - 0.5W @ 4Ω -stereo - 1W @ 8Ω -bridged - Digital Volume Contro.
