AV1815 TO-92 Plastic-Encapsulate Transistors

AV1815 Description

@vic TO-92 Plastic-Encapsulate Transistors AV1815 AV1815 TRANSISTOR NPN .

AV1815 Features

* Power dissipation PCM : 0.4 Collector current W Tamb=25 ICM : 0.15 A Collector-base voltage V(BR)CBO : 60 V Operating and storage junction temperature range TJ Tstg: -55 to +150 TO 92 1.EMITTER 2.COLLECTOR 3.BASE 123 ELECTRICAL CHARACTERISTICS Tamb=25 Parameter Symbol unless otherwise

📥 Download Datasheet

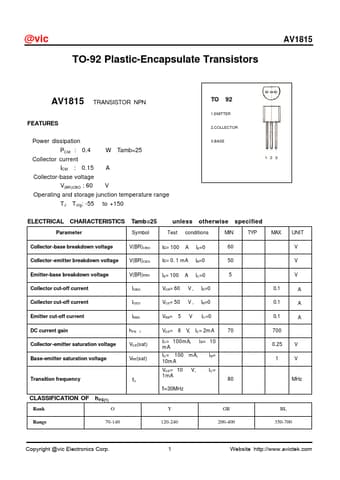

Preview of AV1815 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AV1815
Manufacturer
avic
File Size
385.25 KB
Datasheet
AV1815-avic.pdf
Description
TO-92 Plastic-Encapsulate Transistors
