345STV

HFF LVPECL VCXO

345STV Features

* Ceramic Surface Mount Package

* Ultra-Low Phase Jitter Performance

* High Frequency Fundamental Crystal Design

* Frequency Range 100

* 250MHz

* +3.3V Operation

* Output Enable Standard

* Tape and Reel Packaging, EIA-418 Applications

* Small Cells

345STV General Description

CTS Model 345 is a low cost, small size, high performance VCXO. Employing the latest IC technology, coupled with a high frequency fundamental crystal, M345 has excellent stability and low jitter/phase noise performance. Ordering Information Model 345 Supply Voltage L Absolute Pull Range B Freq.

345STV Datasheet (536.48 KB)

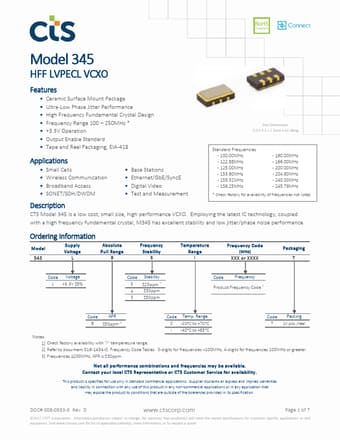

Preview of 345STV PDF

Datasheet Details

Part number:

345STV

Manufacturer:

cts

File Size:

536.48 KB

Description:

Hff lvpecl vcxo.
