DV6224, DV6224-ebm Datasheet - ebm-papst

DV6224 - DC diagonal compact fan

Weight Dimensions Impeller material Housing material Airflow direction Direction of rotation Storage Service life L10 at 40 °C Service life L10 at maximum temperature Cable Motor protection Locked-rotor protection Approval Option 0.820 kg Ø 172 x 51 mm Glass-fiber reinforced PA plastic Aluminum.

Ho

DV 6224 DC diagonal compact fan sickle-shaped blades (S series) ebm-papst St.

Georgen GmbH & Co.

KG Hermann-Papst-Str.

1 D-78112 St.

Georgen Phone +49 (0) 7724 81-0 Fax +49 (0) 7724 81-1309 info2@de.ebmpapst.com www.ebmpapst.com Nominal data Type DV 6224 Nominal voltage Nominal voltage range VDC 24 VDC 16 ..

28 Speed (rpm) min-1 4300 Power consumption W 40.0 Min.

ambient temperature °C -20 Max.

ambient temperature °C 75 Air flow m3/h 540 Sound power level B 7.1 Sound pressure

DV6224-ebm-papst.pdf

This datasheet PDF includes multiple part numbers: DV6224, DV6224-ebm. Please refer to the document for exact specifications by model.

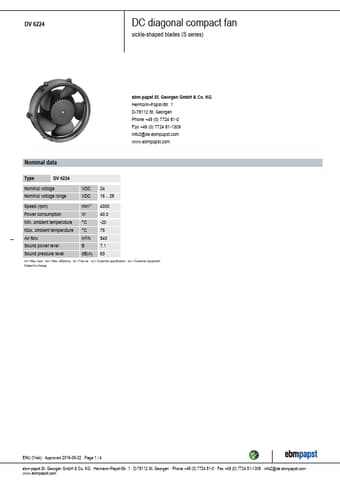

DV6224 Datasheet Preview Page 2 DV6224 Datasheet Preview Page 3

Datasheet Details

Part number:

DV6224, DV6224-ebm

Manufacturer:

ebm-papst

File Size:

363.29 KB

Description:

Dc diagonal compact fan.

Note:

This datasheet PDF includes multiple part numbers: DV6224, DV6224-ebm.
Please refer to the document for exact specifications by model.
