DV6224TDA, DV6224TDA-ebm Datasheet - ebm-papst

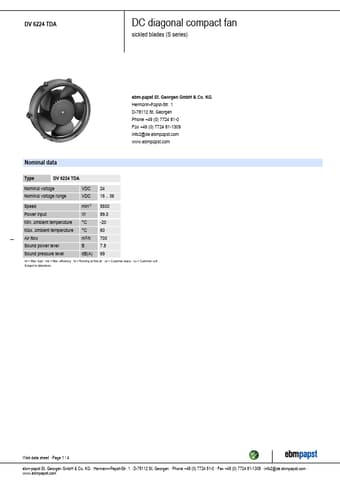

DV6224TDA - DC diagonal compact fan

DV 6224 TDA DC diagonal compact fan sickled blades (S series) ebm-papst St.

Georgen GmbH & Co.

KG Hermann-Papst-Str.

1 D-78112 St.

Georgen Phone +49 (0) 7724 81-0 Fax +49 (0) 7724 81-1309 info2@de.ebmpapst.com www.ebmpapst.com Nominal data Type DV 6224 TDA Nominal voltage Nominal voltage range VDC 24 VDC 16 ..

36 Speed min-1 5500 Power input W 89.0 Min.

ambient temperature °C -20 Max.

ambient temperature °C 60 Air flow m3/h 700 Sound power level B 7.8 Sound pressure level dB(

DV6224TDA Features

* Mass Dimensions Material of impeller Housing material Direction of air flow Direction of rotation Bearing Lifet

DV6224TDA-ebm-papst.pdf

This datasheet PDF includes multiple part numbers: DV6224TDA, DV6224TDA-ebm. Please refer to the document for exact specifications by model.
DV6224TDA Datasheet Preview Page 2 DV6224TDA Datasheet Preview Page 3

Datasheet Details

Part number:

DV6224TDA, DV6224TDA-ebm

Manufacturer:

ebm-papst

File Size:

261.59 KB

Description:

Dc diagonal compact fan.

Note:

This datasheet PDF includes multiple part numbers: DV6224TDA, DV6224TDA-ebm.
Please refer to the document for exact specifications by model.
