C2078 NPN Transistor

2SC2078 NPN Epitaxial Planar Silicon Transistor Application： High frequency power amplifier High Gain：Gp≥12dB @Vcc=12V. f=27MHz Po=4W Package：TO-220AB Absolute Maximum Ratings at Ta = 25°C Item Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP PC Junction Temperature Storage Temperature Tj Tstg Ratings 80 35 5 3 5 1.2 10 150 -55 -125 Unit V V V A A W W °C °C Electrical Characteri.

C2078 Datasheet (90.69 KB)

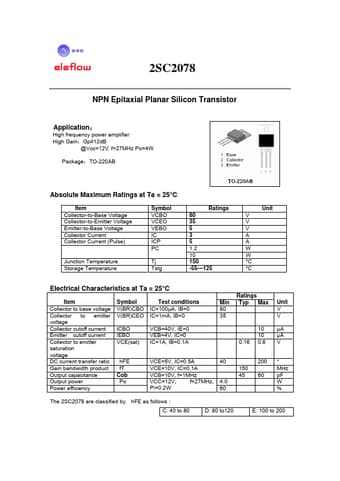

C2078 Datasheet Preview — Preview of C2078 PDF

Datasheet Details

Part number:

C2078

Manufacturer:

eleflow

File Size:

90.69 KB

Description:

Npn transistor.
