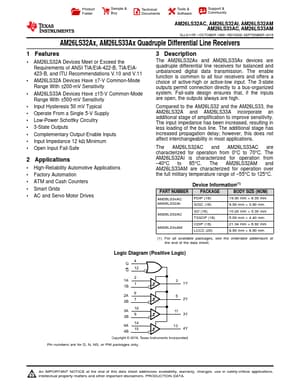

datasheet Preview Page 1 from Datasheet4u.com

26LS32AI, 26LS32AC Quadruple Differential Line Receivers

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community AM26LS32AC, AM26LS32AI, AM26LS32AM AM26LS33AC, AM26LS33AM SL.
The AM26LS32Ax and AM26LS33Ax devices are quadruple differential line receivers for balanced and unbalanced digital data transmission.

26LS32AC-etcTI.pdf

26LS32AI Datasheet Preview — This datasheet PDF includes multiple part numbers: 26LS32AI, 26LS32AC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

26LS32AI, 26LS32AC

Manufacturer:

Texas Instruments ↗

File Size:

1.48 MB

Description:

Quadruple Differential Line Receivers

Note:

This datasheet PDF includes multiple part numbers: 26LS32AI, 26LS32AC.
Please refer to the document for exact specifications by model.

Features

* 1 AM26LS32A Devices Meet or Exceed the Requirements of ANSI TIA/EIA-422-B, TIA/EIA423-B, and ITU Recommendations V.10 and V.11
* AM26LS32A Devices Have ±7-V Common-Mode Range With ±200-mV Sensitivity
* AM26LS33A Devices Have ±15-V Common-Mode Range With ±500-mV Sensitivity

Applications

* High-Reliability Automotive Applications
* Factory Automation
* ATM and Cash Counters
* Smart Grids
