54ACT11034
63.84 KB

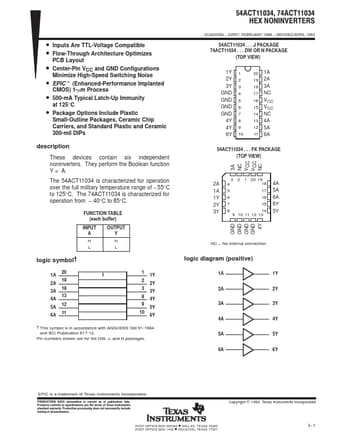

Hex noninverters.
ą
* Inputs Are TTL-Voltage Compatible * Flow-Through Architecture Optimizes
PCB Layout
* Center-Pin.
These devices contain six independent noninverters. They perform the Boolean function Y = A.
The 54A.
