54ACT11241 Datasheet - Texas Instruments

54ACT11241 OCTAL BUFFERS/LINE DRIVERS

These octal buffers or line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Taken together with the ACT11240 and ACT11244, these devices provide the choice of selected com.
3-State Outputs Drive Bus Lines or Buffer Memory Address Registers Inputs Are TTL-Voltage Compatible Flow-Through Architecture Optimizes PCB Layout Center-Pin VCC and GND Configurations Minimize High-Speed Switching Noise t EPIC (Enhanced-Performance Implanted CMOS) 1-mm Process 500-mA Typical Latch-Up Immunity at 125°C Package Options Include Plastic Small- Outline Packages, Plastic Shrink Small-Outline Packages, Ceramic Chip .

54ACT11241 Datasheet (85.36 KB)

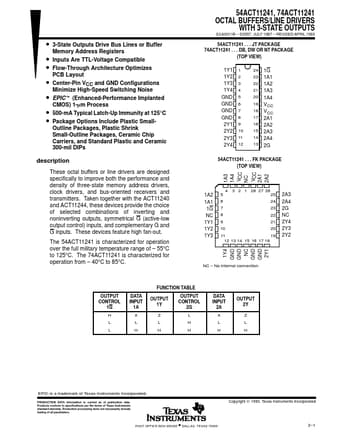

Preview of 54ACT11241 PDF
54ACT11241 Datasheet Preview Page 2 54ACT11241 Datasheet Preview Page 3

Datasheet Details

Part number:

54ACT11241

Manufacturer:

Texas Instruments ↗

File Size:

85.36 KB

Description:

Octal buffers/line drivers.
