54HC14 Datasheet, Inverters, Texas Instruments

54HC14 Features

  • Inverters
  • Buffered inputs
  • Wide operating voltage range: 2 V to 6 V
  • Wide operating temperature range: -40°C to +85°C
  • Supports fanout up to 10 LSTTL loads

PDF File Details

Part number:

54HC14

Manufacturer:

Texas Instruments ↗

File Size:

1.64MB

Download:

📄 Datasheet

Description:

Hex inverters. This device contains six independent inverters with Schmitt-trigger inputs. Each gate performs the Boolean function Y = A in positiv

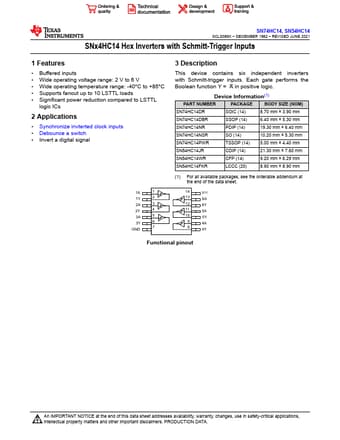

Datasheet Preview: 54HC14 📥 Download PDF (1.64MB)
Page 2 of 54HC14 Page 3 of 54HC14

54HC14 Application

  • Applications
  • Synchronize invterted clock inputs
  • Debounce a switch
  • Invert a digital signal 1A 1 1Y 2 2A 3 2Y 4
