54HC153 Datasheet, Selectors/multiplexers, Texas Instruments

54HC153 Features

  • Selectors/multiplexers
  • Wide operating voltage range of 2 V to 6 V
  • Outputs can drive up to 15 LSTTL loads
  • Low power consumption, 80-μA max ICC
  • Typical tpd = 9 ns

PDF File Details

Part number:

54HC153

Manufacturer:

Texas Instruments ↗

File Size:

1.81MB

Download:

📄 Datasheet

Description:

Dual 4-line to 1-line data selectors/multiplexers. The SNx4HC153 is a dual data selector/multiplexer containing full binary decoding to select one of four data sources. Both channels

Datasheet Preview: 54HC153 📥 Download PDF (1.81MB)

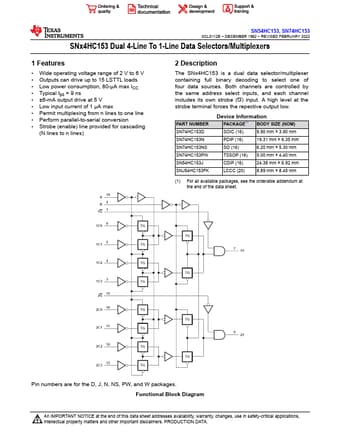

Page 2 of 54HC153 Page 3 of 54HC153

54HC153 Application

  • Applications intellectual property matters and other important disclaimers. PRODUCTION DATA. SN54HC153, SN74HC153 SCLS112E
      – DECEM
