74HC245 - Octal Bus Transceivers

Product Overview

Texas Instruments

📥 Download Datasheet

74HC245 Octal Bus Transceivers by Texas Instruments - Datasheet Preview — Datasheet preview – 74HC245

Datasheet Details

Part number	74HC245
Manufacturer	Texas Instruments
File Size	2.79 MB
Description	Octal Bus Transceivers
Datasheet	74HC245 Datasheet

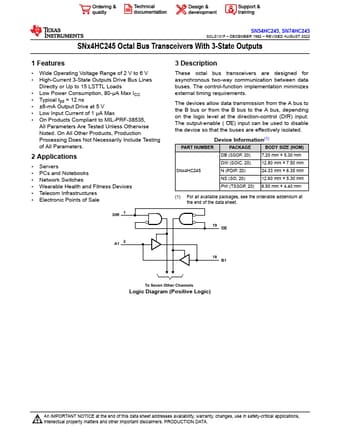

Additional preview pages of the 74HC245 datasheet.

Product details

Description

These octal bus transceivers are designed for asynchronous two-way communication between data buses.

Features

Wide Operating Voltage Range of 2 V to 6 V.
High-Current 3-State Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads.
Low Power Consumption, 80-μA Max ICC.
Typical tpd = 12 ns.
±6-mA Output Drive at 5 V.
Low Input Current of 1 μA Max.
On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters. 2 App.
