74LS245 Datasheet - Texas Instruments

74LS245 Octal Bus Transceivers

These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The SNx4LS245 devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the .

74LS245 Features

* 1 3-State Outputs Drive Bus Lines Directly

* PNP Inputs Reduce DC Loading on Bus Lines

* Hysteresis at Bus Inputs Improves Noise Margins

* Typical Propagation Delay Times Port to Port, 8 ns 2 Applications

* Building Automation

* Electronic Point of Sa

74LS245 Datasheet (1.50 MB)

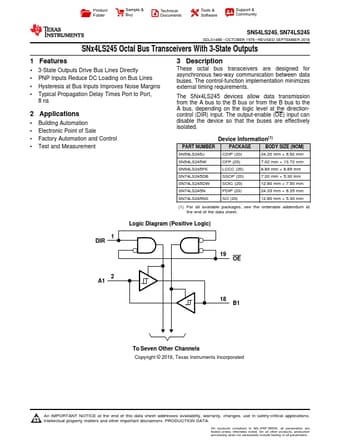

Preview of 74LS245 PDF
74LS245 Datasheet Preview Page 2 74LS245 Datasheet Preview Page 3

Datasheet Details

Part number:

74LS245

Manufacturer:

Texas Instruments ↗

File Size:

1.50 MB

Description:

Octal bus transceivers.
