75157 Datasheet - Texas Instruments

75157 DUAL DIFFERENTIAL LINE RECEIVER

The SN75157 is a dual differential line receiver designed to meet Standards EIA/TIA-422-B and -423-B and ITU V.10 and V.11. It utilizes Schottky circuitry and has TTL-compatible outputs. The inputs are compatible with either a single-ended or a differential-line system. The device operates from a s.

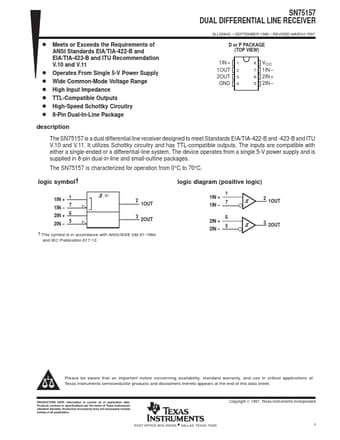

SN75157 DUAL DIFFERENTIAL LINE RECEIVER D Meets or Exceeds the Requirements of ANSI Standards EIA/TIA-422-B and EIA/TIA-423-B and ITU Recommendation V.10 and V.11 D Operates From Single 5-V Power Supply D Wide Common-Mode Voltage Range D High Input Impedance D TTL-Compatible Outputs D High-Speed Schottky Circuitry D 8-Pin Dual-In-Line Package SLLS084C SEPTEMBER 1980 REVISED MARCH 1997 D or P PACKAGE (TOP VIEW) 1IN + 1 1OUT 2 2OUT 3 GND 4 8 VCC 7 1IN 6 2IN + 5 2I.
