78L12

100-mA Fixed Output Linear Regulator

78L12 Features

* 1 For lower cost alternative, see the UA78L

* Input voltage up to 30 V

* Output voltage tolerances of ±5% over the temperature range

* Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V

* Output current of 100 mA

* Output transistor saf

78L12 General Description

The LM78L series (LM78Lxx throughout this document) of three terminal positive regulators is available with several fixed output voltages, making them useful in a wide range of applications. Used as a Zener-diode and resistor combination replacement, the LM78Lxx usually provides an effective output .

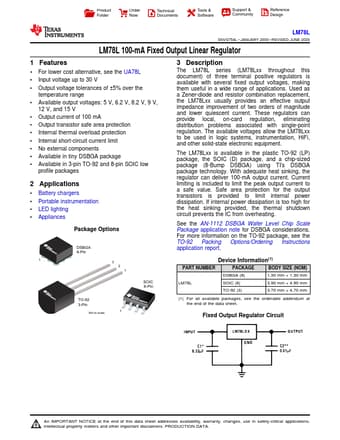

78L12 Datasheet (1.85 MB)

Preview of 78L12 PDF

Datasheet Details

Part number:

78L12

Manufacturer:

Texas Instruments ↗

File Size:

1.85 MB

Description:

100-ma fixed output linear regulator.
Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design LM78L SNVS754L

* JANUARY 2000
